Gulfstream 2 RGBW

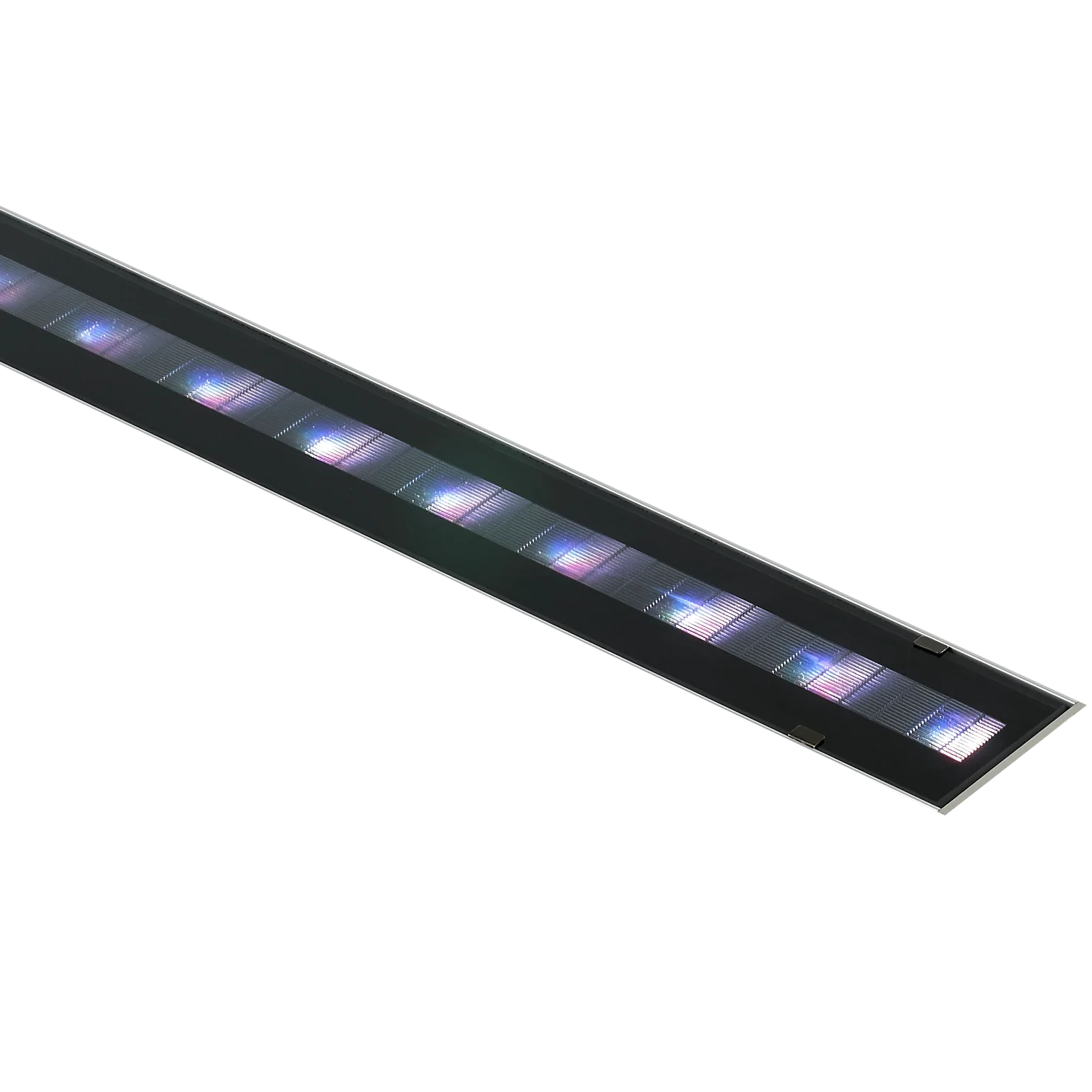

The Gulfstream 2 is a buriable drive-over high performance linear fixture with variable optics for wall grazing of facades.

1/1

Description

Outdoor buriable IP68, very high output luminaire with glare control and secondary lenses for asymmetric throw. Gulfstream 2® RGBW is available with trim or as a trimless model with a seamless tempered glass edge, exposing only a thin border of the inground mounting housing.

Stand alone or continuous housings with covers between fixtures which simplify installation by providing a thru-wiring option.

Options include internal louvers for glare control and non-slip lens treatments. Gulfstream 2® RGBW is also available with white LEDs and the option of line voltage options.

Resources

Gulfstream 2 RGBW Spec Sheet
Gulfstream 2 Catalog
Gulfstream 2 RGBW Wiring Diagram
Gulfstream 2 Installation
IES Files

Quick Specs

Title	Gulfstream 2 RGBW
Certifications	RoHS
CRI	80+
Warranty	5 yr/ 50,000 hour limited warranty
Environment	IP68/IK10
Max Run	24V - 30ft / 120V - 145ft / 240V - 290ft
LED Wattage	24V or 48V DC 14.5w/ft or 120V-277V 19w/ft 540lm/ft
Electrical	Remote 24V or 48V or Integral 120-277V
Finish	Anodized dark gray / Liquid painted for black
Mounting	Ingrade Aluminum Installation Profile
Optics	Optics : 10° , 20° , 40° , 10° x 60° , 20° x 40° , Asymmetric, Wide
Dimming	DMX with RDM / DMX/ DALI / 0-10(1-10V) / PWM DIMMING
CCT	RGBW 4000K / RGBW 6000K
Length (nom.)	1', 2', 3', 4'
Construction	Extruded aluminum / Tempered glass lens
