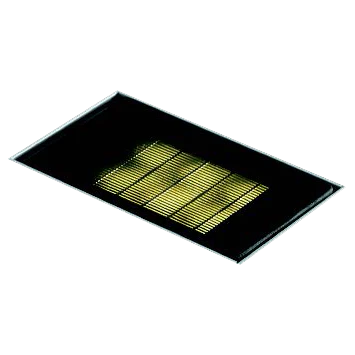

Gulfstream 2 Mini

The Gulfstream 2 is a buriable drive-over high performance linear fixture with variable optics for wall grazing of facades.

1/1

Description

Outdoor buriable IP68, tiny but powerful luminaire with glare control and secondary lenses for asymmetric throw.

Gulfstream 2/M® is available with trim or as a trimless model with a seamless tempered glass edge, exposing only a thin border of the inground mounting housing.

Options include internal louvers for glare control and non-slip lens treatments.

Resources

Gulfstream 2 Mini Spec Sheet
Gulfstream 2 Catalog
Gulfstream 2 Installation
IES Files

Quick Specs

Title	Gulfstream 2 Mini
Certifications	RoHS
CRI	80+
Warranty	5 yr/ 50,000 hour limited warranty
Environment	IP68/IK10
Max Run	N/A
LED Wattage	24V / 48V DC 12.5w
Electrical	Remote 24V / 48V
Finish	Anodized dark gray / Liquid painted for black
Mounting	Ingrade Aluminum Installation Profile
Optics	Optics : 10° , 20° , 40° , 10° x 60° , 20° x 40° , Asymmetric, Wide
Dimming	PWM Dimming
CCT	2700K / 3000K / 4000K / 5000K / 6500K
Length (nom.)	4.7"
Construction	Extruded aluminum / Tempered glass lens
