Architura 1400s Signlighter

The Architura Signlighter has 120˚ distribution for general signlighting wallwashing
creates a powerful energy efficient and economical linear floodlight.

1/1

Description

120V or 277V LED arrays with 120 ̊ distribution for general signlighting wallwashing creates a powerful energy efficient and economical linear floodlight.

Adjustable aiming. Color temperature, mounting options and finishes are all available to customize the fixture to your specific application. Perfect for signs and wallwashing applications, with unparalleled uniformity.

Resources

1400s Signlighter Spec Sheet
1400 Architura Brochure
Mono Color Wiring Diagram
Swivel Mounting Installation
Extended Arm Mounting Installation
Perma Post Mounting Installation
Hub Bracket Mounting Installation
Sliding Bracket Mounting Installation
Glare Shield Installation
Blade Louver Installation
Weep Hole - Read Before Installation
IES Files

Quick Specs

Title	Architura 1400s Signlighter
Certifications	UL Listed
CRI	90+
Warranty	5 yr/ 50,000 hour limited warranty
Environment	Wet Location - IP65. Operating Temperature: -22 ̊F to 122 ̊F
Max Run	N/A
LED Wattage	LS 4W/ft (480lm/ft) - Standard / LH 8W/ft (960lm/ft)- High
Electrical	Driver-Less 120VAC or 277VAC
Finish	Powder Coated White, Black, Bronze, Silver, Custom, Custom RAL Color Code
Mounting	Swivel Mount, Extended Arm, Sliding Bracket, Hub Bracket, & Permapost
Optics	120 ̊
Dimming	Non-dimming, Forward Phase (TRIAC), Reverse Phase (ELV)
CCT	2700K, 3000K, 3500K, 4000K, 5000K
Length (nom.)	1ft, 2ft , 3ft , 4ft ,5ft, 6ft, 7ft, 8ft
Construction	Powder coated aluminum with cast end caps. Polycarbonate lenses.

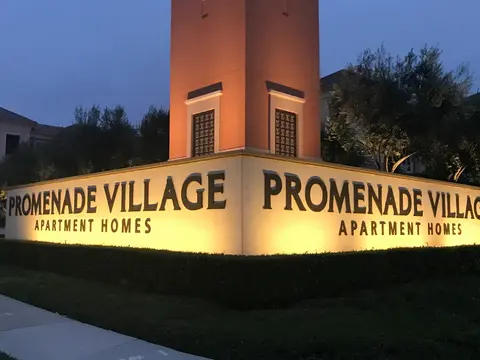

Projects
