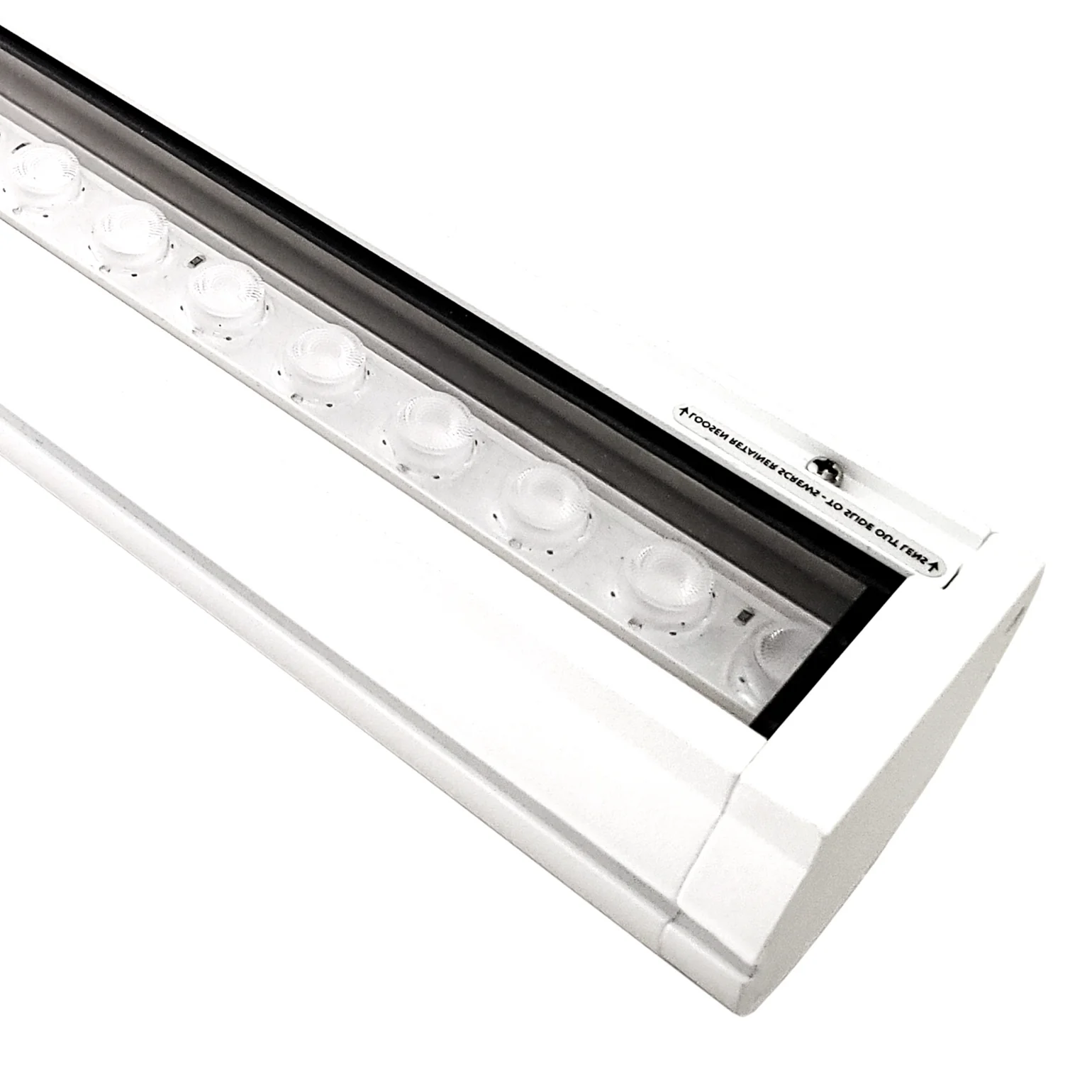

Architura 1400 Whites
IP65 / Row Configurable, Seamless No-Wire Interconnections
1/2
Description
High performance linear wallwash luminaire. Stand alone or connectable in runs up to 295ft with thru-wiring. Lens options enable grazing or long throw, and increase peak lumen output up to five times for high illuminance and improved energy efficiency.
Select 30 ̊ or 45 ̊ lensing for optimum performance and aiming when installing 6in to 4ft off the illuminated surface. Cool running fixtures endure extreme climates.
Perfect for facade and landscape applications, with unparalleled uniformity.
Resources
1400 White Spec Sheet
1400 Architura Brochure
Mono Color Wiring Diagram
Swivel Mounting Installation
Extended Arm Mounting Installation
Perma Post Mounting Installation
Hub Bracket Mounting Installation
Sliding Bracket Mounting Installation
Glare Shield Installation
Blade Louver Installation
IES Files
Quick Specs
Title | Architura 1400 Whites |
---|---|
Certifications | UL Listed |
CRI | 93+ |
Warranty | 5 yr/ 50,000 hour limited warranty |
Environment | Wet Location - IP65. Operating Temperature: -22 ̊F to 122 ̊F |
Max Run | 295ft |
LED Wattage | LS 3.5W/ft (273lm/ft) / LH 4.5W/ft (351lm/ft) / LEH 6.7W/ft (523lm/ft) |
Electrical | 120-277V AC, Row Interconnection or Daisy Chain with input/output IP67 Jumper Cables. |
Finish | Powder Coated White, Black, Bronze, Silver, Custom RAL Color Code |
Mounting | Swivel Mount, Extended Arm, Sliding Bracket, Hub Bracket, & Permapost |
Optics | 15 ̊, 30 ̊, 45 ̊, 120 ̊ |
Dimming | Non-dimming, 0-10V Dimming, Forward Phase(TRIAC), Reverse Phase(ELV) |
CCT | 2700K, 3000K, 3500K, 4000K, 5000K |
Length (nom.) | 1ft, 2ft , 3ft , 4ft , 5ft, 6ft, 7ft, 8ft, Continuous Thru-Wire up to 295ft |
Construction | Powder coated aluminum fixtures. Polycarbonate lenses. |
